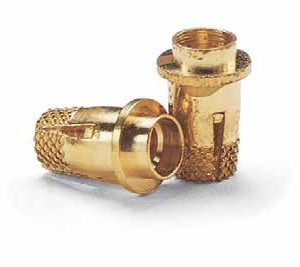

Expansion – Clinch
The installation and clinching operations of the Clinch Expansion Insert are simultaneous, using a simple press-in type tool.
Category: Dodge
Expansion – Standard
- Simple, press in application
- Versatile; can be used in all plastics

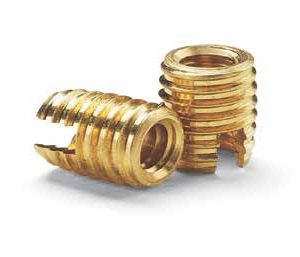

Self Threading
- Installs easily into thermoplastics
- Slots provide rapid cutting action
Self Threading – Flanged
- Installs easily into thermoplastics
- Slots provide rapid cutting action
- Flanged style provides larger bearing surface
Spred-Lok
- Fast and easy press-in installation
- Screw expands insert locking into place
TaperTuff®
- Entire length of insert is in contact with hole during installation
- Tapered hole is required and easier to mold
- Mold design is simplified and molding costs decreased
Ultra-Mold®
- Unique counter bore positions insert over molding pin and allows for easy bolt entry
- Eliminates machine chips and oil residue that could contaminate molded product
Ultraseal®
- For installation after molding using heat
- High temperature O-ring provides pressure tight seal
- Installation temperatures up to 600°F; operating temperature up to 400°F
- Diagonal knurls and fin profiles exceed rotational and tensile requirements
Ultrasert® I
- Vertical flutes and horizontal fins provide superior assembly strength
- Tapered design assures rapid and accurate alignment prior to installation
- Flute and fin design provide a chip-free environment
Ultrasert® II
- Installed ultrasonically or with heat
- Two lengths allow for increased design flexibility
- Diagonal knurls and undercuts provide superior assembly strength
- Excellent design for automated systems
Ultrasert® II Screw-Lock
- Screw-Lock feature has unique locking element for vibration applications
- Eliminates need for patches, lock washers or locking compounds
- Ideal for adjusting screw applications
Ultrasert® III
- No orientation required and ideal for automated assembly
- Opposing diagonal knurls provide torque resistance
- Lead in pilots for rapid and accurate positioning
Ultrasert® IV
- Provides high tensile and rotational strength
- Two lengths allow for design flexibility
- Lead-in pilot positions insert for installation
- Parallel sides for installation into straight holes
Ultrasert® IV Flanged
- Ideal for use as an electrical contact or fastening terminal connectors
- For high strength assemblies; can be used in a reverse screw entry
